Bring exceptional clarity, brightness, and realism to your indoor golf experience with the BenQ LK830ST. Designed for golf simulators and other immersive installations, this compact 4K laser projector combines a short-throw lens, responsive performance, and dependable dust protection.
With a 0.496 throw ratio, the LK830ST can produce a large image from a short distance—ideal for simulator rooms where mounting space is limited. Its 4K UHD resolution delivers sharp course details, while 4,000 ANSI lumens of brightness help keep the image vivid and easy to see. A dedicated Golf picture mode optimizes colour and detail for virtual fairways, greens, bunkers, and surrounding landscapes.
The laser light source provides up to 20,000 hours of operation in Normal mode or 30,000 hours in ECO mode, reducing maintenance and eliminating routine lamp replacements. An IP6X-rated sealed optical engine provides excellent resistance to dust, with an optional anti-dust filter available for added protection in demanding environments.
For larger installations, a one-click preset simplifies multi-projector image blending and helps minimize setup time. Over-the-air firmware updates allow compatible devices to remain current without requiring physical access to each projector.
Native 4K UHD resolution: 3840 × 2160
Bright 4,000-ANSI-lumen laser light source
0.496 short-throw ratio for large images in compact spaces
Dedicated Golf picture mode
Low input lag of 16.7 ms at 4K/60Hz
High-speed performance down to 4.2 ms at 1080p/240Hz
3,000,000:1 dynamic contrast ratio
93% Rec. 709 colour coverage
Displays up to 1.07 billion colours
IP6X sealed optical engine
Up to 30,000 hours of laser life in ECO mode
One-click preset for simplified multi-projector blending
Over-the-air firmware update support
Automatic vertical and manual horizontal keystone correction
Dual HDMI 2.0b inputs with HDCP 2.2
LAN, RS-232, dual USB Type-A, and 3.5 mm audio output
Integrated 15-watt speaker
Quiet operation—as low as 24 dB in ECO mode
Compact, lightweight design at only 3.6 kg
The LK830ST supports multiple screen formats, including 16:9, 16:10, 4:3, 5:4, and 1:1. Its 114% projection offset and two-dimensional keystone adjustment help simplify alignment in a wide range of golf simulator rooms.

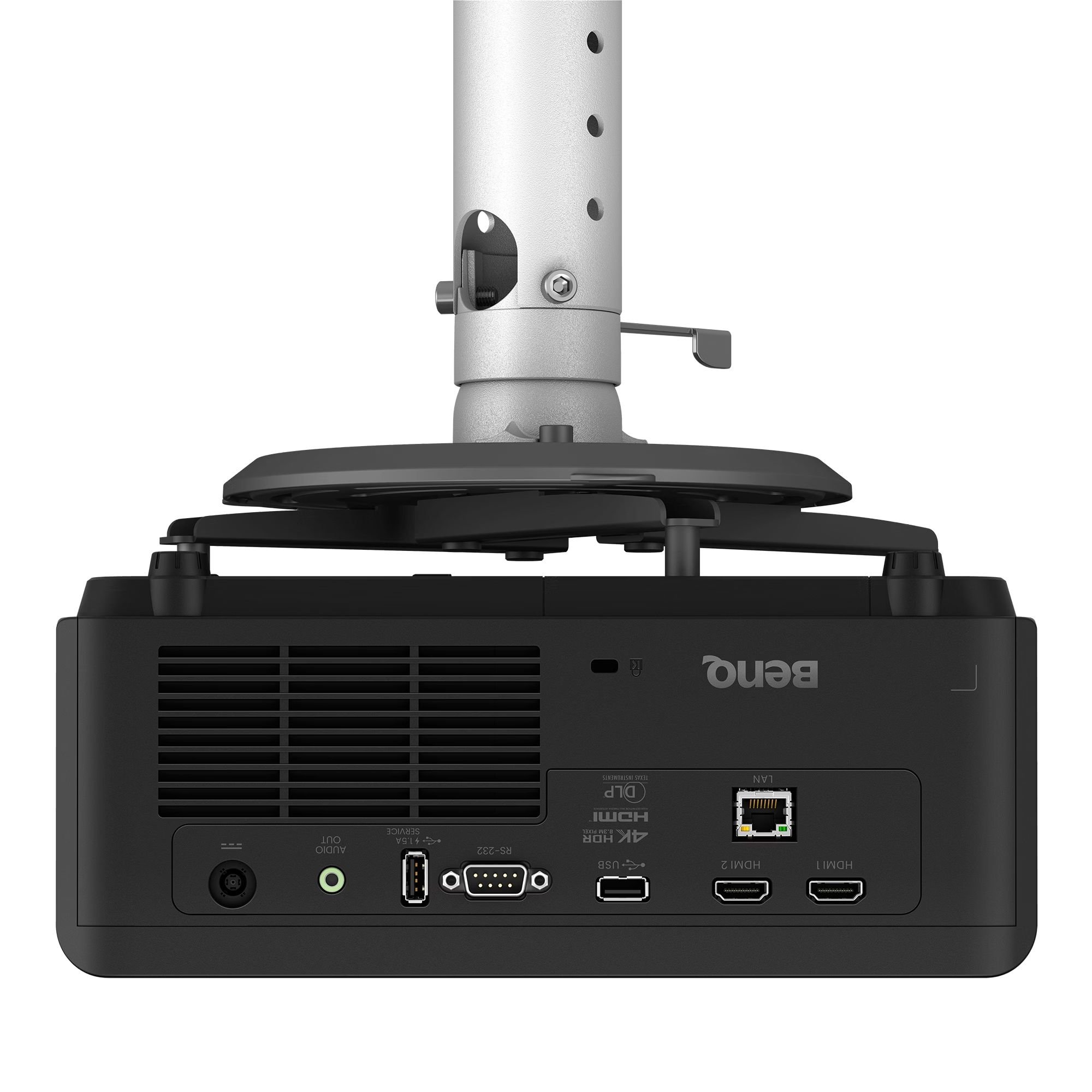

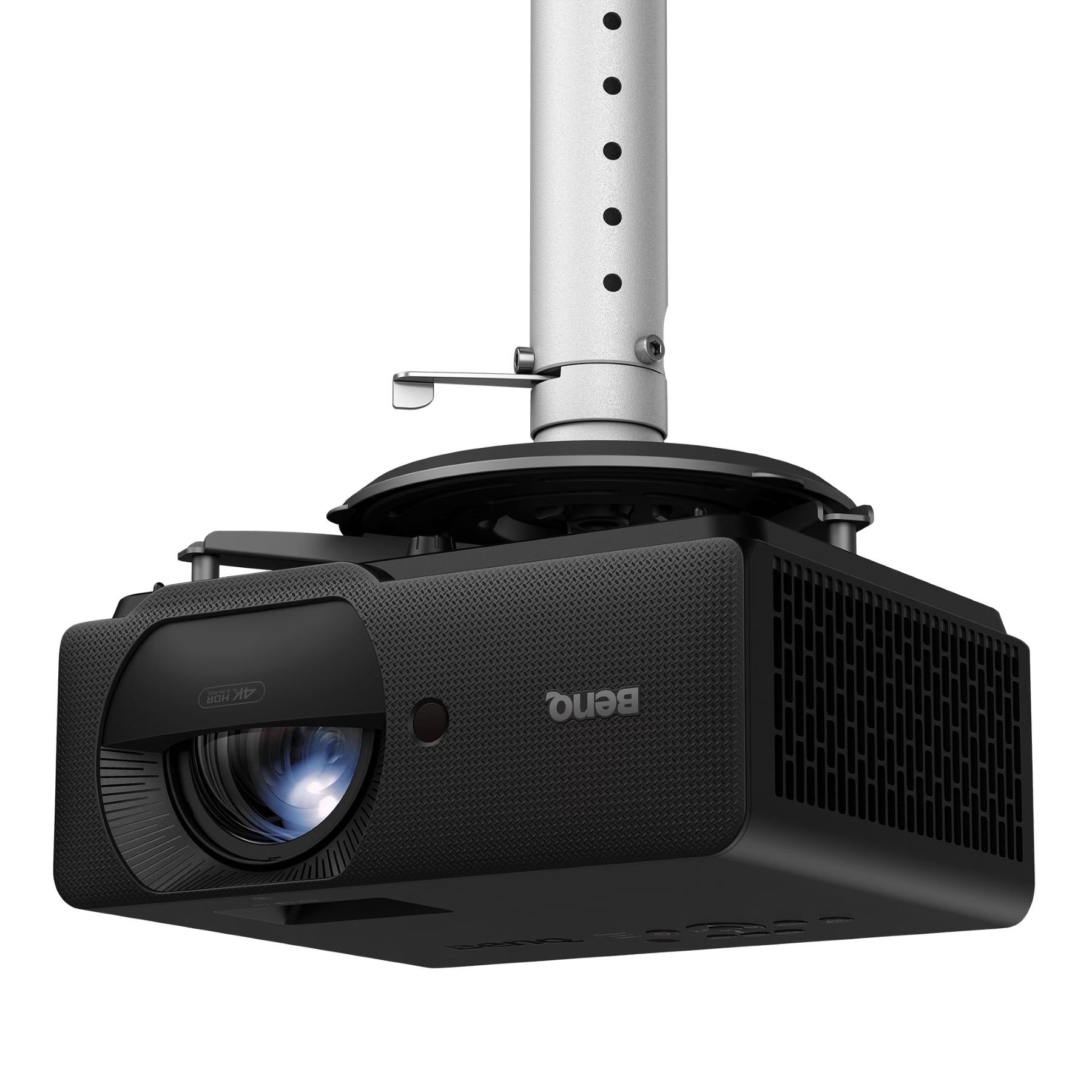

Measuring only 279.2 × 120.5 × 229.3 mm and weighing approximately 3.6 kg, it can be installed using the optional BenQ CM00G3 universal ceiling mount.
Whether you are building a premium residential golf simulator or a multi-bay commercial facility, the BenQ LK830ST delivers the sharp 4K detail, short-throw performance, low latency, and long-term reliability needed for an immersive indoor golf experience.
