BenQ AK700ST 4K Short Throw Laser Golf Simulator Projector

Seamless Swinging and Movie Transitions

The AK700ST is BenQ's dedicated golf simulation projector, offering cinematic-grade 4K resolution and a unique remote control for easy setup. Eliminate the hassle of adjusting screen ratios and effortlessly enjoy a complete 4K entertainment experience with family and friends.

One Projector, Two Experiences

With the BenQ AK700ST, your all-in-one projection solution, effortlessly switch aspect ratios with just one button, ensuring full-screen enjoyment without wasting time on settings.

Auto Screen Fit

Automatically detects and adjusts to your impact screen’s aspect ratio, maintaining optimal resolution.

*Note:

• Auto Screen Fit supports 16:9, 16:10, 4:3, and 1:1 aspect ratios.

• For non-standard aspect ratios, please view the video and adjust via graphic card settings.

• Enclosure or screen black border requires at least 6 cm of width.

Quick Focus

Press the Quick Focus button on the remote control and make slight manual adjustments to effortlessly deliver clear images.

Short Throw Lens Designed for Golf Sim

Swing safely without fear of damage or shadows.

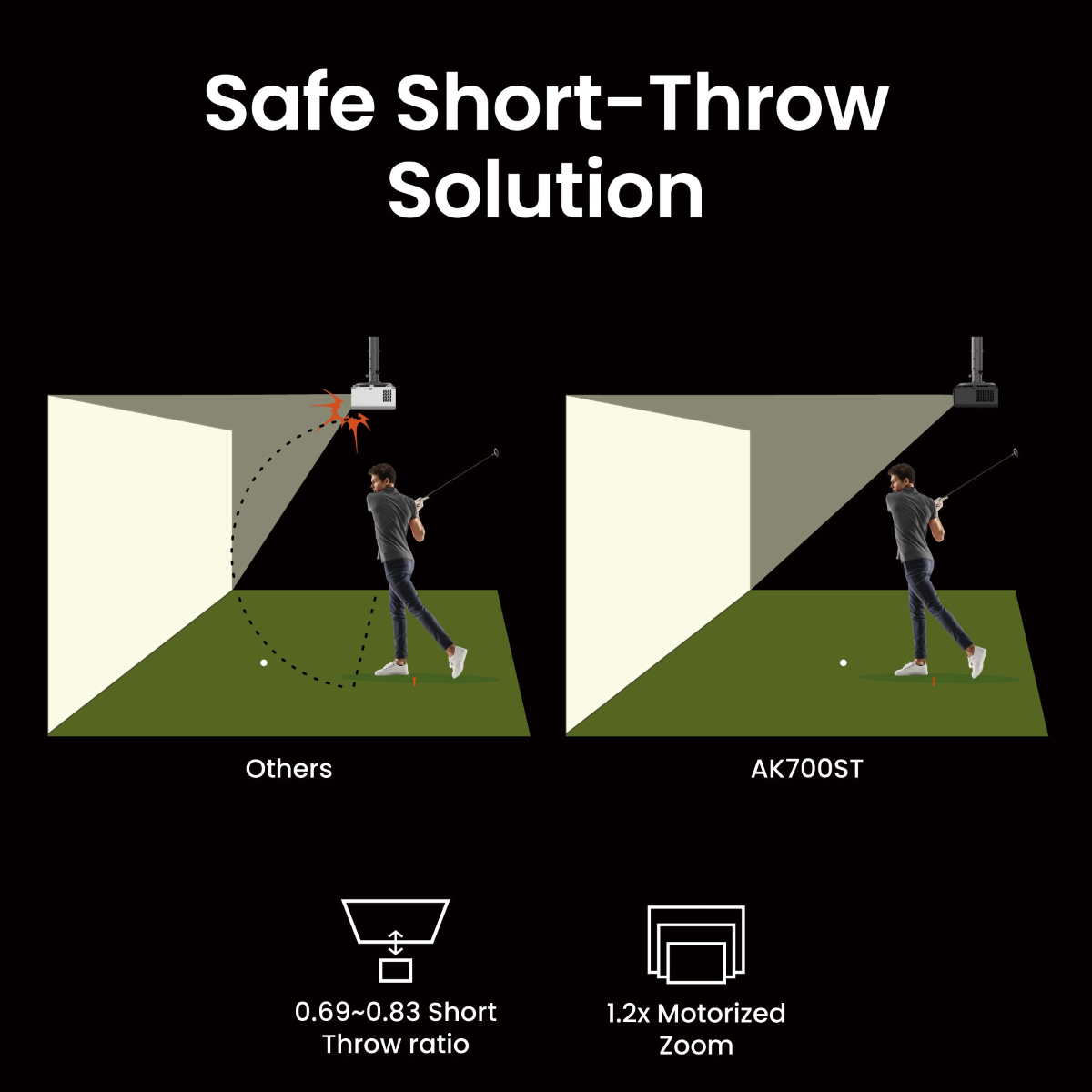

Safe Short-Throw Solution

The AK700ST enables a safe and shadow-free location for your swing.

Traditional short throw projectors: Positioned too close to the hitting area, creates potential collision risks.

AK700ST: Positioned behind the hitter, lowering collision risks and eliminating shadows.

Up to 200-Inch Display

AK700ST features a professional-grade motorized lens with 1.2x optical zoom flexibility. Easily adjust screen size without reinstalling, ensuring no loss in picture quality.

Bring the Course Home

AK700ST's laser technology, paired with BenQ's expert color calibration, delivers top-quality visuals, faithfully reproducing golf course colors.

4K Detail Visibility

With true 4K resolution and 830 million pixels, AK700ST reveals every detail of the golf course terrain and grass, enhancing texture richness.

Perfect for Any Lighting

The AK700ST's laser light source delivers 4000 lumens of brightness and high contrast, ensuring stunning visuals in any lighting condition.

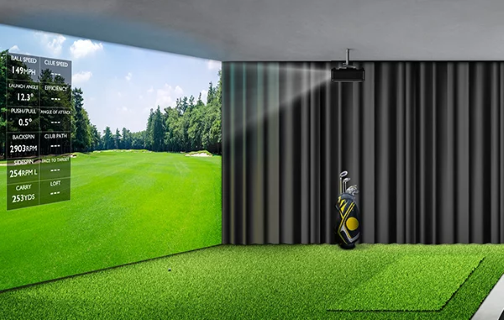

Lights On: Clear contrast and vibrant colors even in a well-lit living room.

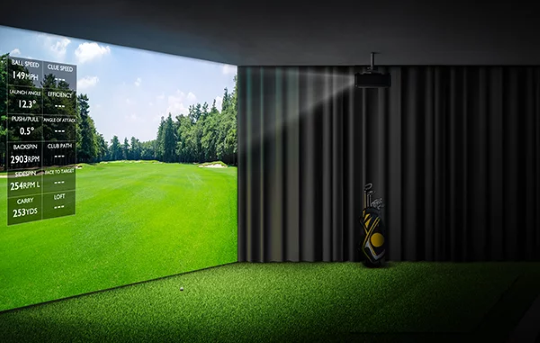

Lights Off: Sharp contrast and vivid colors in low-light settings.

True-to-Life Golf Course Colors

Experience authentic colors from the start with BenQ's exclusive Golf Mode, tailored for different golf course environments that ensure an immersive experience from the most famous courses in the world.

Tough Enough for Any Garage

AK700ST's IP5X dustproof sealed engine operates reliably in temperatures from 32-104°F, eliminating the need for regular filter replacements.

Durable Laser Technology

The AK700ST Laser projector guarantees up to 20,000 hours of light source life, reducing costs associated with lamp replacements and maintenance.

Ready for Wireless Projection

With an optional dongle, AK700ST's Wi-Fi capability facilitates wireless projection from mobile devices, eliminating the need for cables.

Green Technology, Efficient Performance

AK700ST reduces energy consumption by 15% compared to traditional lamp projectors and features a chassis made from post-consumer recycled materials. Plus, it's TUV and UL-certified.

We value environmental protection at every stage of the product life cycle.

All Specifications

Display

Brightness (ANSI lumens) 4000

Resolution 4K UHD (3840×2160)

Native Aspect Ratio 16:9

Contrast Ratio (FOFO) 3,000,000:1

Display Color 30-bit (1.07 billion colors)

Light Source Laser

Light Source Life 20000 hrs

Optical

Throw Ratio 0.69-0.83

Zoom Ratio 1.2x

Lens F/2.53(Wide), f = 10.2mm(Wide)

Projection Offset (Full-Height) 102.5%

Keystone Adjustment 3D, Vertical ± 30 degrees; Horizontal ± 30 degrees; Rotation ± 30 degrees


Rec. 709 Coverage 95%

Picture Modes 3D, Bright, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2

Compatibility

Input Lag 33.4 ms (1080P 60Hz)

Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)

Horizontal Frequency 15K~135KHz

I/O Interface

HDMI in (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)

USB Type A (x2), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-3 (2.0/Wireless Dongle)

USB Type C (x1), Display Port with PD out 5V/1A

RS232 in (DB-9pin) (x1)

Audio

Speaker (x1), 10W

HDMI Audio Return eARC, 7.1 channel

Environment

Operating Temperature 0~40℃

Power Supply AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V) 192W

Stand-by Power Consumption

<0.5W Acoustic Noise (Typ./Eco.)(dB) 32db/29db

Accessories

Wireless USB dongle 5201BS

Remote Control w/ Battery RCA011

Power Cord (by region) x1 (1.8M)

Quick Start Guide (x1) 21L

Warranty Card (by region) Yes

Universal Ceiling Mount CM00G3

Dimension & Weight

Dimensions (WxHxD) (mm) 303.5 x 112.4 x 234.5

Net Weight (kg) 3.4 Kg +/- 100g

Dimensions (WxHXD) (inch) 11.94 x 4.43 x 9.23

Net Weight (lb) 7.48 lb

Projection System

Projection System DLP
